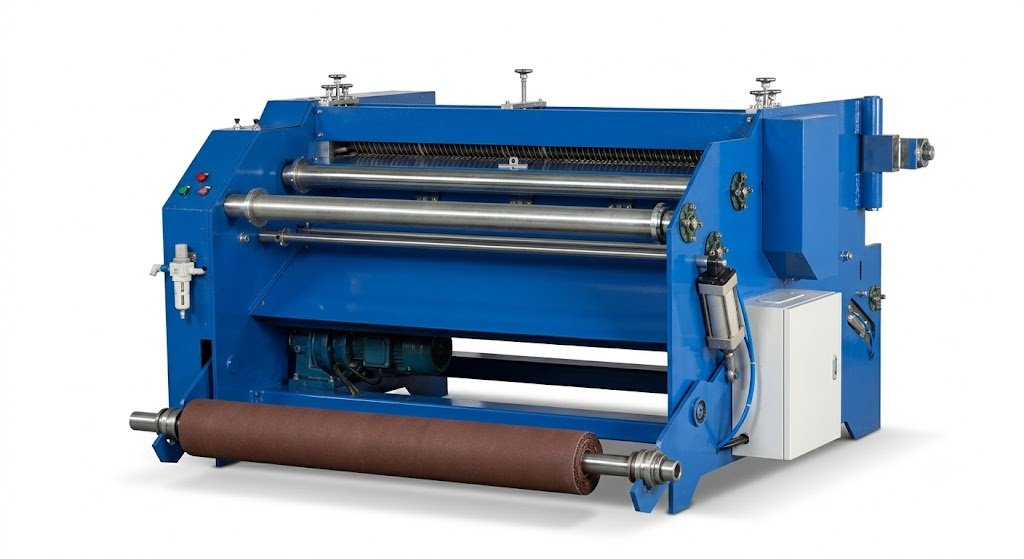

High-Precision Abrasive Cloth Jumbo Roll Slitting Machine
Engineered for flap disc raw material processing. This slitting machine efficiently cuts abrasive cloth jumbo rolls into narrow strips. Built for stability, it ensures neat edges and precise widths, laying the foundation for top-quality manufacturing.
EQUIPMENT TECHNICAL PARAMETERS
- Max. Jumbo Roll Width: 1650mm
- Max. Roll Diameter: 1200mm
- Slitting Width: 15 – 38 mm
- Slitting Speed:10 – 15 minutes / roll
- PLC System: Delta
- Pneumatic Cylinder: AirTAC
- Pneumatic Pressure: 0.6 – 0.8 MPa
- Rated Power: 3.5 kW
- Rated Voltage: 380V, 50Hz, 3 Phase
- Dimensions (L x W x H): 2.1m x 2.0m x 1.25m
- Machine Weight: 1200 KG
