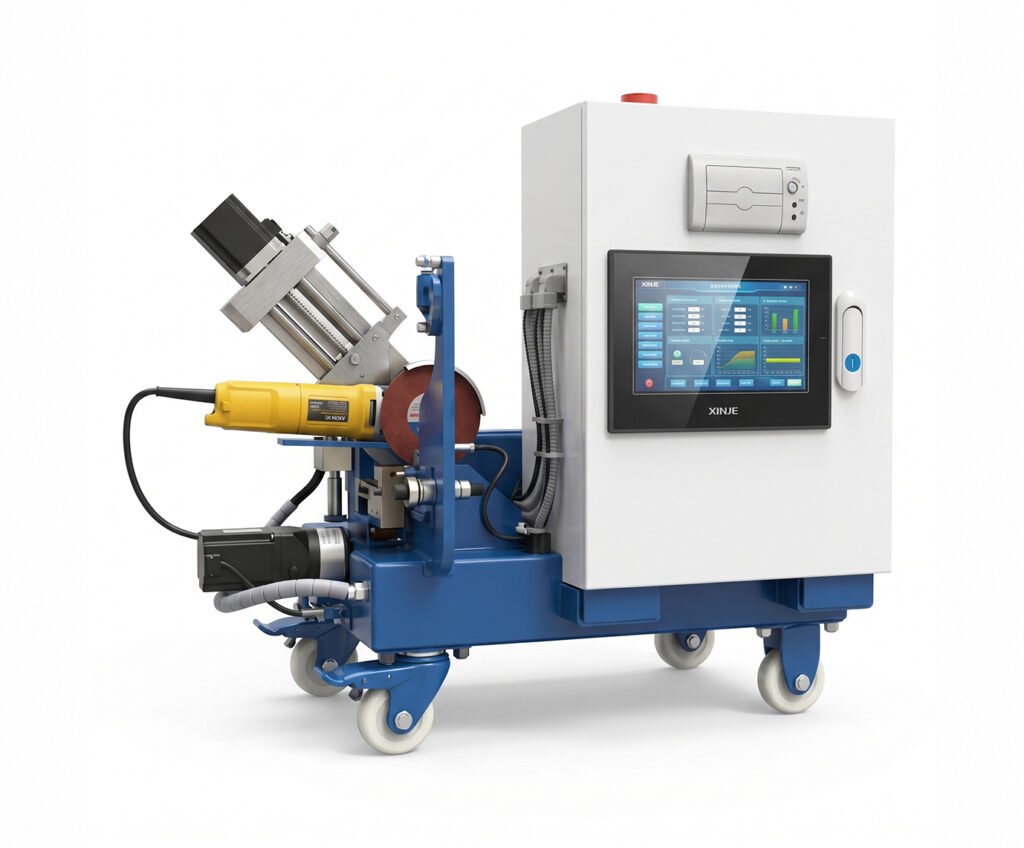

Automatic Cutting Disc Testing Machine
Designed for precise quality control in abrasives manufacturing, this fully automatic machine is engineered to accurately test the cutting performance and maximum number of cuts for resin cutting discs. By utilizing an automated mechanical cutting process, it perfectly replaces manual testing, completely eliminating the inconsistencies caused by varying human cutting force. This ensures strictly objective and standardized data to verify the sharpness and overall efficiency of your finished products.
EQUIPMENT TECHNICAL PARAMETERS
Machine Type: Fully Automatic Cutting Disc Tester
Testing Capabilities: Number of cuts, cutting efficiency, sharpness
Standard Size Compatibility: 100mm, 105mm, 125mm resin cutting discs
Custom Size Support: Available for 230mm large-size discs
Control System: Smart Touchscreen HMI (with report printing function)
Weight Matching System: Fully automatic
Power Supply: 220V / 380V, 50Hz (Can be customized)
Rated Power: 3 kW
Machine Dimensions (L×W×H): 600 mm × 500 mm × 500 mm
Machine Weight: 35 KG
Highly Standardized Data: By substituting manual operation with automated mechanical cutting, it guarantees constant cutting pressure, completely eliminating human force variations and generating reliable performance data.
Smart Touchscreen Control: Equipped with an intelligent HMI system that allows operators to easily adjust testing values and instantly print detailed test reports upon completion.
Cost-Effective & Versatile: A multi-purpose testing unit engineered to significantly reduce labor expenses while streamlining your quality assurance workflow.
